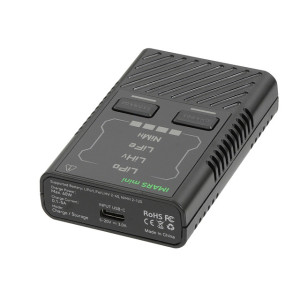

Gens ace Imars Mini Charger G-Tech

Gens ace Imars Mini Charger is a smart charger specifically designed for Gens ace G-Tech Smart Batteries, but it is also compatible with standard batteries. It is an excellent solution that automatically adjusts to the type of battery, providing safe and efficient charging.

Features

The Gens ace Imars Mini charger, thanks to automatic battery recognition technology, automatically detects the battery type, voltage, and the recommended charging current when a Gens ace G-Tech battery is connected. The charging process starts automatically when the G-Tech Smart battery is connected, ensuring ease of use.

For non-smart batteries, manual selection of the battery type and charging mode is required. The charger intelligently adjusts the charging current based on the battery voltage, which influences the safety and efficiency of the charging process. Additionally, due to its compact size, it is very convenient for storage and transport.

Specifications

Charges LiPo, LiHV, LiFe batteries with a range of 2-4S (cells) and NiMH batteries with a range of 2-12S (cells).

Intelligently recognizes G-Tech Smart battery information using an integrated circuit (IC) for safe and easy charging.

The automatic storage function is the smallest charger with an automatic storage mode.

New interface design and improved durability of the balancing connector.

Product Specifications:

Maximum charging power: 60W

Charging current: 1-5A, max. 5A (automatic adjustment)

Maximum storage power: discharge 3W, charge 60W

Input voltage: 5-20V

Maximum input current: DC 3A

Balancing current: 0.4A/cell x 2

Input port: QC/PD/BC1.2/USB-C V1.4/SDP/CDP/DCP/Apple 5V/2.4A (does not support 5V/1A adapter input)

Battery over-voltage alarm: Yes

Supported battery types: Lipo/LiHv/LiFe (2-4S), NiMH (2-12S)

Operating temperature: 0?~40?

Storage temperature: -20?~60?

Dimensions: 85*55*21mm

Weight:250 g
