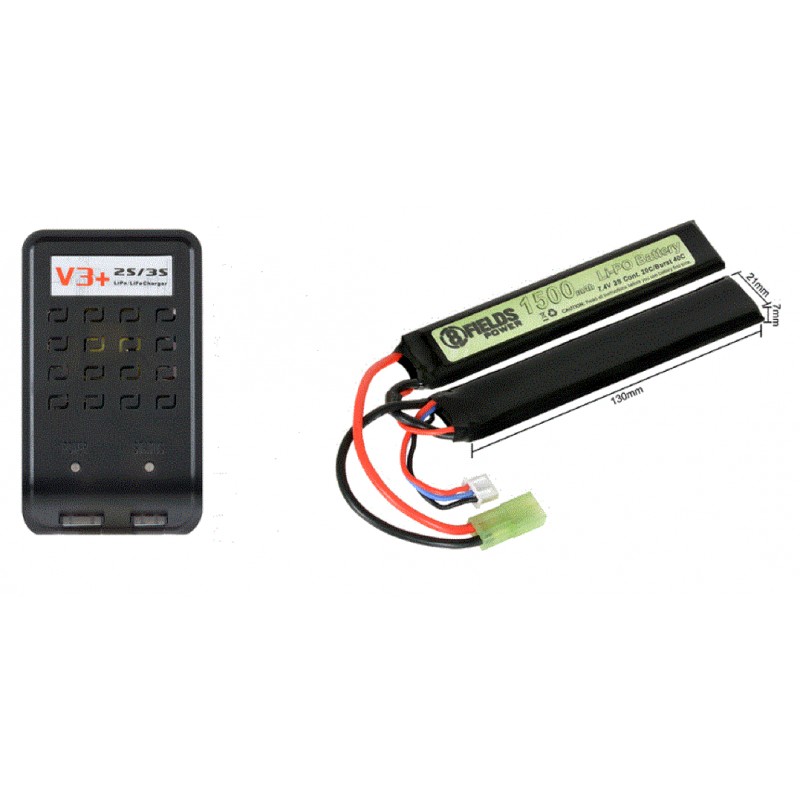

COMBO LIPPO BATTERY & V3+ Charger for LiPo/LiFe 2S/3S [IPower]

Charger details;

Quick and easy to use charger with balancer. This charger is compact and light witch can charge 2S/3S Li-ion/LiPo & LiFe battery pack, especially there is a corresponding balance port for each cells.

The charger has two diodes indicating the operating mode.

Use the switch to select the type of battery to charge - LiPO/Li-ion or LiFe.

The charger does not have the option of loading two packages at the same time!

After connecting to the power supply, both LEDs will light up.

The LED on the left informs us that the charger is connected to the power supply and to the right with the status of the battery being charged.

The red light indicates charging. Green light indicates the battery is fully charged.

If the right LED flashes red, stop charging immediately, it means a malfunction.

Charger parameters:

- input voltage: 100-240V AC, 50/60 Hz

- output current: 0,8 A

We recommend buying an alarm / meter for LiPo batteries to easily and quickly monitor the battery condition.

WARNING

* *ONLY* for 7,4V/11,1V Li-ion, Li-Po/Li-ion or LiFe batteries

* Charging two batteries at same time is forbidden, *ONLY* one package at one time

NOTE!The charger is designed for indoor use only. Do not leave the charger unattended during charging.

NOTE!The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods.

NOTE!Don't cover the charger when charging, ambient temperature shall not be more than 30oC

NOTE!Do not leave batteries charging on flammable surfaces, wood surface or carpet.

NOTE!Cut off the power supply before connect or disconnect the charger with batteries.

NOTE!Don't try to disassemble the charger, High voltage inside, danger!

Never leave the battery pack unattended. Especially do not connect it to the charger for the whole night!

When charging the battery, it is recommended to put it in the "safety battery charging bag".

Avoid short-circuits and mechanical damage to the battery.

Mechanical damage or improper battery charging may lead to the fire of the battery!

Battery details;

LiPo batteries are characterised by a positive capacity-to-weight ratio and a low self-discharge rate, which benefits their use. The lithium-polymer batteries we offer are built with two (7.4V) or three (11.1V) cells. These cells are small in relation to the offered capacity, thanks to which they can be used in replicas where space for a battery is limited. Rifles powered by this type of energy source will work more efficiently and longer, compared to the traditional type of batteries.

Dimensions: 13 x 2,1 x 0,7 (cm x cm x cm)

Capacity: 1500 mAh

Voltage: 7,4 V

Maximum discharge power (semi fire): 30A

Maximum discharge power (auto fire): 60A
