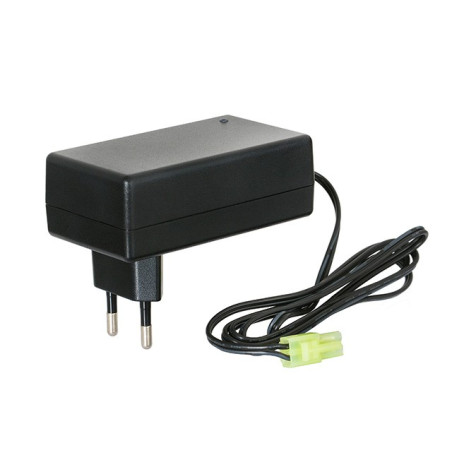

MICROPROCESSOR CHARGER FOR BATTERIES NIMH/NICD - 8.4/9.6V

Battery charger for NI-MH / NI-CD batteries - 8.4/9.6V.

This microprocessor charger automatically disconnects after charged the battery, completing the charging process, signaling the -green LED- battery charged.

It has a signaling LED, the red color means charging and the green color - battery is full.

Thanks, microprocessors charging is fast and the battery is charging optimally.

Your battery will never be overcharged, and you do not have to calculate the battery charging time.

Using this charger will significantly extend the life of the battery.

The charger has a small Tamiya connector, is suitable for most common batteries.

The charger is dedicated to the battery with a number of cells from 4 to 8 and a capacity no more than 1600mAh.

Charger parameters:

- input voltage: 100-240V AC, 50/60 Hz

- output voltage: 15 V

- output current: 1 A

NOTE!The charger is designed for indoor use only. Do not leave the charger unattended during charging.
NOTE!The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods.
NOTE!Don't cover the charger when charging, ambient temperature shall not be more than 30oC
NOTE!Do not leave batteries charging on flammable surfaces, wood surface or carpet.
NOTE!Cut off the power supply before connect or disconnect the charger with batteries.
NOTE!Don't try to disassemble the charger, High voltage inside, danger!

Never leave the battery pack unattended. Especially do not connect it to the charger for the whole night!
When charging the battery, it is recommended to put it in the "safety battery charging bag".
Avoid short-circuits and mechanical damage to the battery.
Mechanical damage or improper battery charging may lead to the fire of the battery!
